Toyota Harrier (ASU60 ASU65) MAF Sensor Wiring Diagram

[Roland.O]

This official wiring diagram is critical for circuit tracing, power and ground verification and sensor signal calibration for the intake MAF connector D14. It gives exact pin configurations for the 12V power feed, the 5V sensor reference voltage, the chassis ground path and the voltage lines sending airflow data to the ECM. Attempting to diagnose sluggish performance or rich/lean fuel faults without factory procedures can lead to pinning mistakes during scope or multimeter testing causing permanent damage to the ECM.

Common questions that this diagram answers​

1. What is the pinout mapping for the Intake Mass Air Flow Meter D14 connector on a Toyota Harrier ASU60/ASU65?
2. How do I test for proper 5V reference and 12V supply power at the Toyota Harrier ASU60/ASU65 MAF sensor?
3. What are the wire colours for the mass air flow meter harness on a Toyota Harrier 8AR-FTS engine?
4. How do you isolate an open ground wire from a failing sensor element when diagnosing MAF circuit fault codes for Harrier ASU60/ASU65?

How to access the diagram​

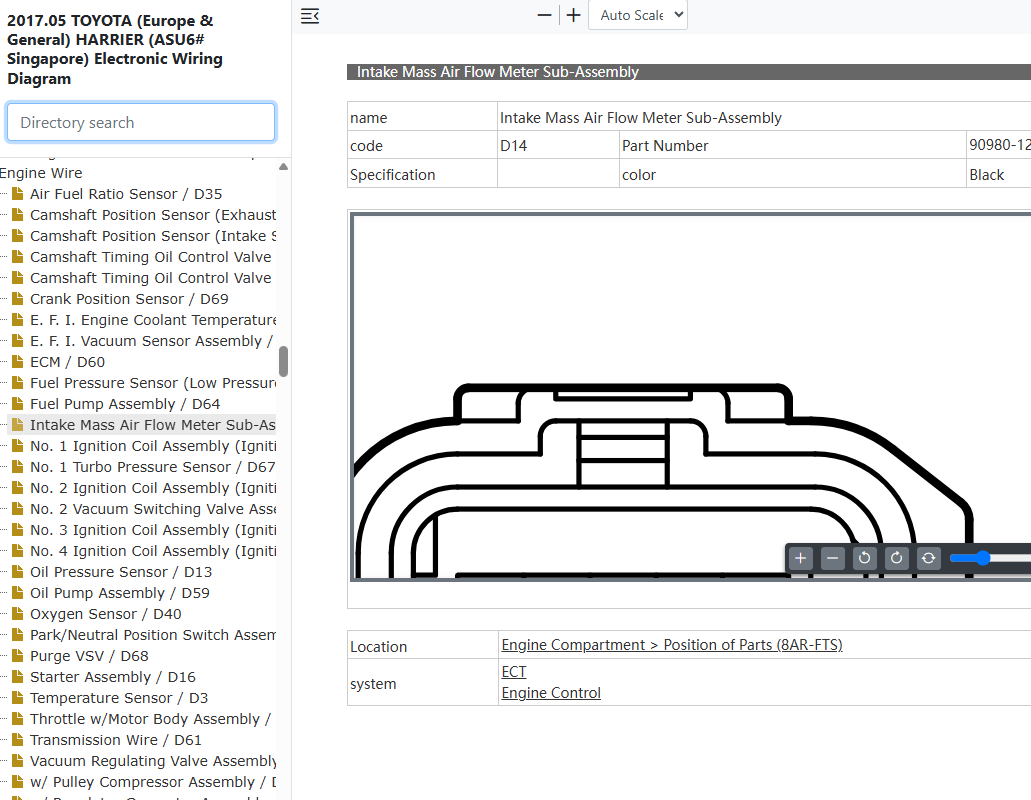

Click on the link below to access the complete OEM Manual, within it you will find the MAF Sensor Wiring Diagram. I have given the screenshot below to help you quickly navigate to the section where the diagram is located. Once you find it, you can then print or save it. Let me know if you face any challenges or have any questions and I will be happy to answer in the thread below. Please note that the year in the document is not the YOM but the document release date so it covers the entire model range. Also note the document applies to all countries where the model is sold Including Singapore, Australia, Malaysia, Kenya, UK, New Zealand, etc.
